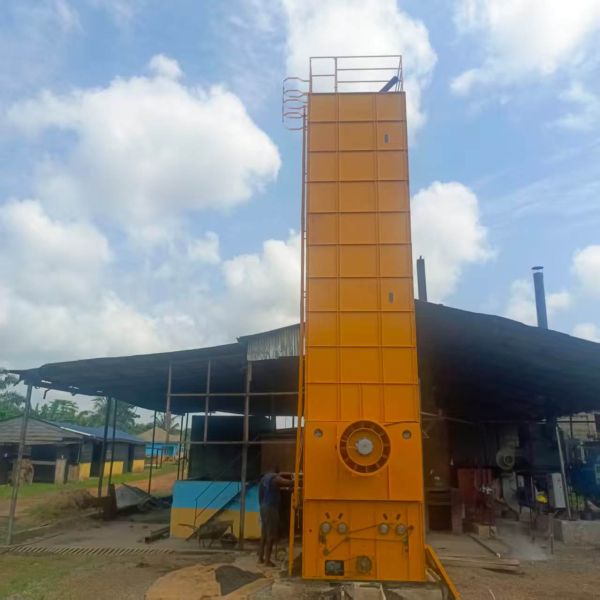

Palm Kernel Dryer Machine Nuts Seeds Dryer Tower 15 Tons Automatic Dryer For Sell

Product Categories

PRESUN AGRO MACHINERY CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : PAM

Model Number : PMD-15

Certification : ISO

Place of Origin : CHINA

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month

Delivery Time : 7 working days if no special request

Packaging Details : standard export wooden cases

Type : batch type

Usage : grain drying

Condition : new

Drying Rate : 0.5~1.2%

Power : 9.95kw

Dryer Dimension : 1850*4170*10200mm

Whole Dimesion : 2500*4320*10200mm

Contact Now

How Did Dryer Works

Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

TECHNICAL PARAMETERS

Model	PMD-15
Loading capacity	15Tons
Dimension	2560185010700mm
Drying Type	Low Temperature circulating Type
Power For Fan	5.5KW
Drying Rate	0.6~1.2%
Heat Consumption	<20,000 KCalorie
Weight	3,000KG
Standard Device	Moisture Meter,Conveyor,Fan

Furnace Burner Options

WORKING DIAGRAM

Palm Kernel Dryer Machine Nuts Seeds Dryer Tower 15 Tons Automatic Dryer For Sell

APPLICANTS:

Palm Kernel Dryer Machine Nuts Seeds Dryer Tower 15 Tons Automatic Dryer For Sell
